Extending a Management Group - Managing Policies and Initiatives

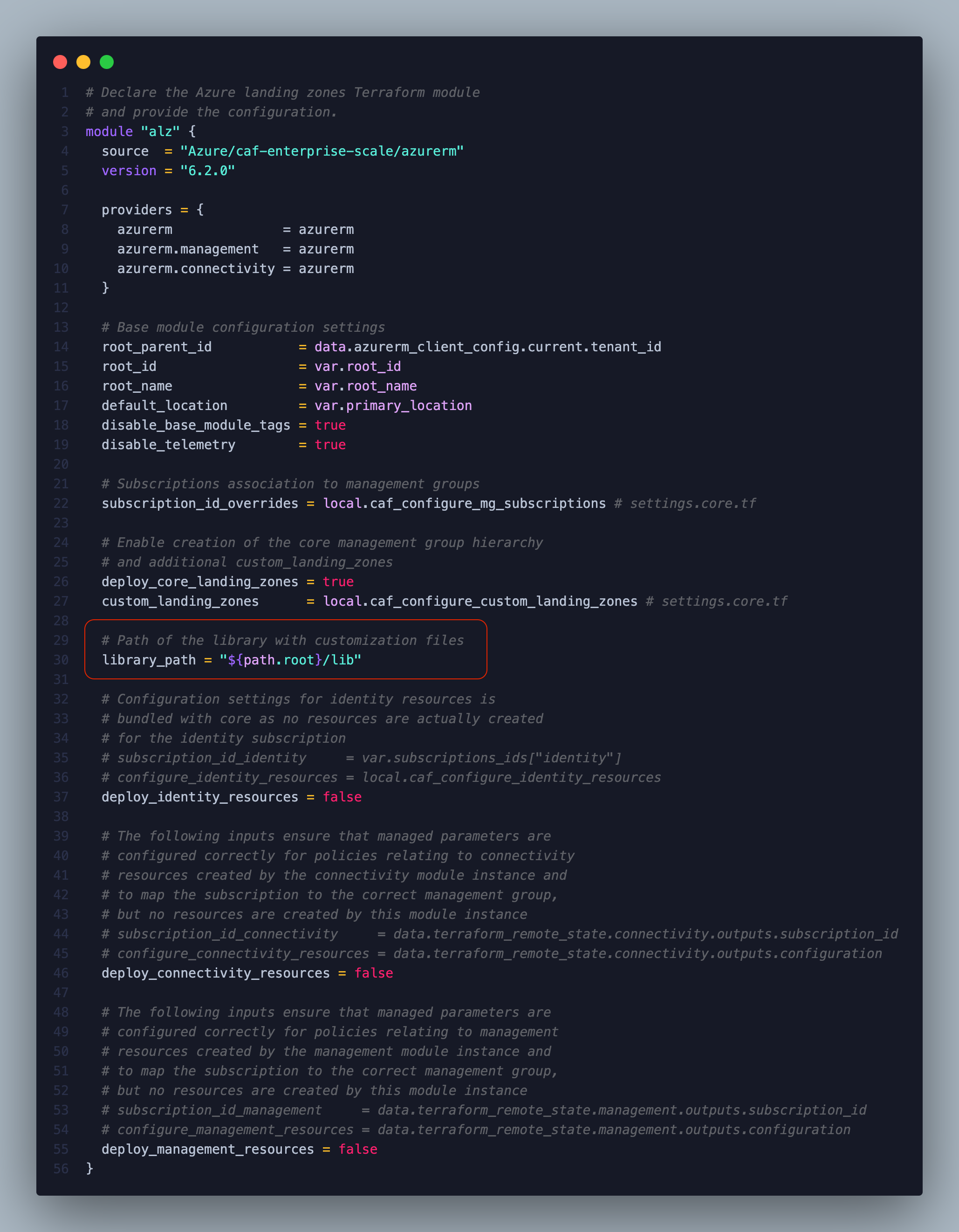

In the previous post, we explained how the library_path parameter works and outlined the requirements for customizing policies and initiatives. Now, it’s time to put that knowledge into practice.
For all the examples in this post, we will work based on
mg-example-management.
How to Associate a Policy created by the module with a different Management Group?
In this example, we will add the policy "Deny-Subnet-Without-Nsg", to the management group mg-example-management, which was created by the module.
To achieve this, I created the file archetype_extension_es_management.json in the lib/archetype_definitions folder. Inside the file structure, I added the policy name under the policy_assignments array, as shown in the example below:
1
2
3
4
5
6
7
8
9
10
11
{
"extend_es_management": {
"policy_assignments": [
"Deny-Subnet-Without-Nsg",
],
"policy_definitions": [],
"policy_set_definitions": [],
"role_definitions": [],
"archetype_config": {}
}
}
The policy already exists in
mg-example-identity, and there is a default assignment file. Therefore, we only need to add the policy name to the archetype.
How do I know policy name to use? I accessed the policy definition file created by the module and grab thename.
To know the names of the default archetypes for management groups, you can check the names at the beginning of the archetype files inmodules/archetypes/lib/archetype_definitions, where the defaults usually start withes_NAME. We addextend_before because we are extending the existing management group.
Is it possible to associate an existing built-in Azure Policy/Initiative using the module?
Yes, it is possible. In this example, we will associate the ISO 27001:2013 initiative to mg-example-management.
To achieve this, I create a file named policy_assignment_es_management_iso27001.json in the lib/policy_assignments folder with this content:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
{
"name": "ISO-27001",
"type": "Microsoft.Authorization/policyAssignments",
"apiVersion": "2019-09-01",
"properties": {
"description": "The International Organization for Standardization (ISO) 27001 standard provides requirements for establishing, implementing, maintaining, and continuously improving an Information Security Management System (ISMS). These policies address a subset of ISO 27001:2013 controls. Additional policies will be added in upcoming releases. For more information, visit https://aka.ms/iso27001-init",
"displayName": "ISO 27001:2013",
"notScopes": [],
"parameters": {
},
"policyDefinitionId": "/providers/Microsoft.Authorization/policySetDefinitions/89c6cddc-1c73-4ac1-b19c-54d1a15a42f2",
"nonComplianceMessages": [
{
"message": "ISO 27001 {enforcementMode} be enforced"
}
],
"scope": "${current_scope_resource_id}",
"enforcementMode": null
},
"location": "${default_location}",
"identity": {
"type": "SystemAssigned"
}
}
I added the initiative to the policy_assignments array in archetype_extension_es_management.json, as its definition already exists since it’s built-in. Therefore, I don’t need to create a definition and add it to the archetype in the policy_set_definitions.
1
2
3
4
5
6
7
8
9
10
11
12
{
"extend_es_management": {
"policy_assignments": [
"Deny-Subnet-Without-Nsg",
"ISO-27001"
],
"policy_definitions": [],
"policy_set_definitions": [],
"role_definitions": [],
"archetype_config": {}
}
}
How do I create a custom Policy?
To achieve this, I created a file named policy_definition_custom_restrict_cognitive_services_types.json in the lib/policy_definitions folder as shown in the example below:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
{
"name": "Restrict-Cognitive-Services-Types",
"type": "Microsoft.Authorization/policyDefinitions",
"properties": {
"displayName": "Restrict Cognitive Services Types",
"description": "Enforces the allowed deployment types for Microsoft Cognitive Services accounts. Deployments with unapproved SKUs will be denied.",
"metadata": {
"category": "Cognitive Services",
"version": "1.0.0"
},
"mode": "All",
"parameters": {
"allowedSkus": {
"type": "Array",
"metadata": {
"displayName": "Allowed Deployment Types",
"description": "Select the allowed Deployment Types for deployment"
},
"allowedValues": [
"Standard",
"Provisioned-Managed",
"GlobalStandard"
],
"defaultValue": [
"Standard",
"GlobalStandard"
]
},
"effect": {
"type": "String",
"metadata": {
"displayName": "Effect for the others",
"description": "Enable or disable the enforcement of the policy"
},
"allowedValues": [
"AuditIfNotExists",
"Deny",
"Disabled"
],
"defaultValue": "Deny"
}
},
"policyRule": {
"if": {
"allOf": [
{
"field": "type",
"equals": "Microsoft.CognitiveServices/accounts/deployments"
},
{
"field": "Microsoft.CognitiveServices/accounts/deployments/sku.name",
"notIn": "[parameters('allowedSkus')]"
}
]
},
"then": {
"effect": "[parameters('effect')]"
}
}
}
}
After creating the file, I Added the initiative to the policy_definitions array in archetype_extension_es_management.json:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
{
"extend_es_management": {
"policy_assignments": [
"Deny-Subnet-Without-Nsg",,
"ISO-27001"
],
"policy_definitions": [
"Restrict-Cognitive-Services-Types"
],
"policy_set_definitions": [],
"role_definitions": [],
"archetype_config": {}
}
}
In this case, I am only creating the policy, but I am not associating it with any management group. If I were to associate it, I would need the assignment file and place it in the archetype structure under
policy_assignments. However, it has not been associated because we will use it within the initiative instead.
How do I create a custom Initiative?
To achieve this, I created a file named policy_set_definition_custom_example_initiative.json in the lib/policy_set_definitions folder as shown in the example below:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
{
"name": "Example-Initiative",
"type": "Microsoft.Authorization/policySetDefinitions",
"properties": {
"displayName": "Example Initiative",
"policyType": "Custom",
"description": "Just an example initiative.",
"metadata": {
"category": "General"
},
"version": "1.0.0",
"parameters": {
"tagName": {
"type": "String",
"metadata": {
"displayName": "Tag Name",
"description": "The name of the tag to enforce."
},
"defaultValue": "business-owner"
}
},
"policyDefinitions": [
{
"policyDefinitionReferenceId": "Provisioned-Managed deployment type is not allowed",
"policyDefinitionId": "${root_scope_resource_id}-management/providers/Microsoft.Authorization/policyDefinitions/Restrict-Cognitive-Services-Types",
"definitionVersion": "1.*.*",
"effectiveDefinitionVersion": "1.0.0",
"parameters": {}
},
{
"policyDefinitionReferenceId": "Require a tag on resource group: business-owner",
"policyDefinitionId": "/providers/Microsoft.Authorization/policyDefinitions/96670d01-0a4d-4649-9c89-2d3abc0a5025",
"definitionVersion": "1.*.*",
"effectiveDefinitionVersion": "1.0.0",
"parameters": {
"tagName": {
"value": "[parameters('tagName')]"
}
}
}
],
"policyDefinitionGroups": []
}
}
In this initiative example, I am creating it with two policies: one custom policy I created in the previous example and one built-in policy. Since the built-in policy already exists, I don’t need to create the definition file for it; I just add its ID.
After creating the file, I Added the initiative to the policy_set_definitions array in archetype_extension_es_management.json:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
{
"extend_es_management": {
"policy_assignments": [
"Deny-Subnet-Without-Nsg",,
"ISO-27001"
],
"policy_definitions": [
"Restrict-Cognitive-Services-Types"
],
"policy_set_definitions": [
"Example-Initiative"
],
"role_definitions": [],
"archetype_config": {}
}
}
How do I associate the custom Initiative?
To associate the custom initiative, I created a file named policy_assignment_es_management_example_initiative.json in the lib/policy_assignments folder as shown in the example below:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
{
"type": "Microsoft.Authorization/policyAssignments",
"apiVersion": "2019-09-01",
"name": "Ex-Init-Assign",
"location": "${default_location}",
"identity": {
"type": "None"
},
"properties": {
"description": "Just an example initiative.",
"displayName": "Example Initiative Assignment",
"policyDefinitionId": "${root_scope_resource_id}-management/providers/Microsoft.Authorization/policySetDefinitions/Example-Initiative",
"nonComplianceMessages": [
{
"message": "Resources under this scope must comply with the Example Initiative."
}
],
"parameters": {
"tagName": {
"value": "business-owner"
}
},
"notScopes": [],
"scope": "${current_scope_resource_id}",
"enforcementMode": null
}
}
After creating the file, I Added the initiative to the policy_assignments array in archetype_extension_es_management.json:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
{
"extend_es_management": {
"policy_assignments": [
"Deny-Subnet-Without-Nsg",,
"ISO-27001",
"Ex-Init-Assign"
],
"policy_definitions": [
"Restrict-Cognitive-Services-Types"
],
"policy_set_definitions": [
"Example-Initiative"
],
"role_definitions": [],
"archetype_config": {}
}
}
In summary, you need to determine if the policy/initiative you want already exists, if it is being created by the module, and then associate the files, whether they are definitions or assignments.
🔗 Check out the changes in the repository: https://github.com/diegosrp/azure-caf/core/extending_a_management_group
You can also check the documentation through the repository’s wiki.
We can review the definitions and associations of the policies/initiatives created by the module within each
Module Library folder
